Gas Compression Springs

Stainless Steel Gas Compression Springs 8 23
Rod D1Ø 8MM 0.315"
Cylinder D2Ø 23MM 0.91"

Stroke lengths (S): 20-300MM 0.79"-11.81"
Extended length EL1: Stroke (S)*2 +45MM 1.77" (shortest possible)
Extended length EL2: Stroke (S)*2 +45MM + connecting parts

Force (F1) range: 30-700N 6.75-158Lbs

Rod: Stainless Steel 316
Cylinder: Stainless Steel 316

Damping: Normal/No/Increased
Speed: Normal/Slow/Fast
Working temperature: -30°C +80°C -22°F +176°F
Progression ( approx.): 21%

Part # 505N Threaded ends M8x1.25
Part # 505N Part # 505N threaded ends L: 9MM 0.35"
Extended length (EL): Stroke (S)*2 +45MM/1.77" ( shortest possible )

Part # 515N Eye ends E8N
Part # 515N Part # 515N threaded ends A: M8x1.25
B: Ø8.1MM
C: 16MM
D: 20MM
E: 10MM

0.319"
0.63"
0.79"
0.39"
Extended length (EL): Stroke (S)*2 +85MM/3.35" ( shortest possible )

Part # 515.3N Eye ends E8.9N
Part # 515.3N Part # 515.3N eye ends A: M8x1.25
B: Ø8.1MM
C: 16MM
D: 22MM
E: 5MM

0.319"
0.63"
0.87"
0.20"
Extended length (EL): Stroke (S)*2 +89MM/3.50" ( shortest possible )

Part # 525N Clevis end C8
Part # 525N Part # 525N clevis eye ends d2: M8x1.25
d1: Ø8MM
B: 8MM
G: 16MM
L1: 42MM
L2: 32MM

0.315"
0.315"
0.63"
1.65"
1.26"
Extended length (EL): Stroke (S)*2 +109MM/4.29" ( shortest possible )

Part # 535N Angle ball joint ends A8N
Part # 535N Part # 535N angle ball joint ends d2: M8x1.25
d2/1: M8x1.25
a: 30MM
d1: ball Ø13MM
L2: 16.5MM


1.18"

0.65"
Extended length (EL): Stroke (S)*2 +105MM/4.13" ( shortest possible )

Part # 535.1N Angle ball joint ends A8.1N
Part # 535.1N Part # 535.1N angle ball joint ends d2: M8x1.25
d2/1: 5/16-18UNC
a: 20MM
d1: ball Ø10MM
L2: 16.5MM


0.79"

0.65"
Extended length (EL): Stroke (S)*2 +85MM/3.35" ( shortest possible )

Part # 535.2N Angle ball joint ends A8.2N
Part # 535.2N Part # 535.2N angle ball joint ends d2: M8x1.25
d2/1: 5/16-18UNC
a: 25MM
d1: ball Ø10MM
L2: 16.5MM


0.98"

0.65"
Extended length (EL): Stroke (S)*2 +95MM/3.74" ( shortest possible )

Part # 535.3N Angle ball joint ends A8IN
Part # 535.3N Part # 535.3N angle ball joint ends d2: M8x1.25
d2/1: 5/16-18UNC
a: 30MM
d1: ball Ø13MM
L2: 16.5MM


1.18"

0.65"
Extended length (EL): Stroke (S)*2 +105MM/4.13" ( shortest possible )

Part # 535.5N Angle ball joint ends A8.5N
Part # 535.5 Part # 535.5 angle ball joint ends d2: M8x1.25
d2/1: M8x1.25
a: 25MM
d1: ball Ø10MM
L2: 16.5MM


0.98"

0.65"
Extended length (EL): Stroke (S)*2 +95MM/3.74" ( shortest possible )

Part # 535.7N Angle ball joint ends A8.7N
Part # 535.7 Part # 535.7 angle ball joint ends d2: M8x1.25
d2/1: M8x1.25
a: 20MM
d1: ball Ø10MM
L2: 16.5MM


0.79"

0.65"
Extended length (EL): Stroke (S)*2 +85MM/3.35" ( shortest possible )

Part # 565N Metal ball socket ends B32N
Part # 565 Part # 565 metal ball socket ends d2: M8x1.25
a: 20MM
d1: ball Ø10MM

0.79"
Extended length (EL): Stroke (S)*2 +85MM/3.35" ( shortest possible )

Part # 565.2N Metal ball socket ends B38N
Part # 565.2N Part # 565.2 metal ball socket ends d2: M8x1.25
a: 30MM
d1: ball Ø13MM

0.98"
Extended length (EL): Stroke (S)*2 +105MM/4.13" ( shortest possible )

Part # 565.4N Metal ball socket ends B36N
Part # 565.4N Part # 565.4 metal ball socket ends d2: M8x1.25
a: 25MM
d1: ball Ø10MM

0.98"
Extended length (EL): Stroke (S)*2 +95MM/3.74" ( shortest possible )

Part # 567N Rod end bearings RB8N
Part # 567N Part # 567 rod end bearings RB8N d3: M8x1.25
L1: 36MM
d1: Ø8MM
L2: 24MM

1.42"
0.315"
0.94"
Extended length (EL): Stroke (S)*2 +117MM/4.61" ( shortest possible )

Options:

- Valve: V Option valve
- Friction: F Option friction
- Dust boot: D Option dustboot steel
- Rod protector: R Option rodprotector steel Stroke reduction 5MM
- Lockable protector: L Option lockable rodprotector steel Stroke reduction 5MM

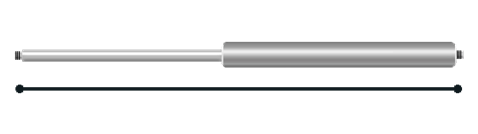

- Horizontal use: H Option horizontal use steel EL1/EL2 increase
- Low temperature -45°C / -49°F A
- High temperature 200°C / 392°F B
- Foodgrade Oil H1
- Private label P

Product Inquiry example:
Part # Stroke (S) MM/INCH Length (EL2) MM/INCH Force N/Lbs Damping Speed Working temp Options
515N 100 / 3.94 283 / 11.14 180N / 40Lbs Normal Normal Normal
Extended length (EL) of a gas compression spring is calculated when piston rod is fully extended
Force (F1) measured with piston rod 5MM/ 0.20" compressed
Progression rate will change depending on cylinder volume
Connecting parts are interchangeable, make your own combination or go to product category connecting parts to view more options
Please be advised that Extended Length EL2 will change depending on your choice of connecting parts

An integral part of our customer service is helping customers with finding a replacement gas spring for their application. As we have thousands of numbers on file, we can crossover any brand to our high industrial quality gas springs. Please enter the number you want to crossover without dots/dashes/slashes etc. and our part number will appear. Please be advised that we update this list on a daily basis, should the number you want to crossover does not give a match please contact us and we will be happy to help you.

Search tip: due to a variety of forces in Lbs or N(ewton) just only enter a part number followed by the force. When a part number starts with a 0 (zero) just enter the number you want to cross reference without 0
