Gas Spring Connecting Parts
Choose a connecting-part category to compare available types and dimensions.
In this range
8 types
Eye types
Gas spring eye end fittings for pin or bolt mounting. Compare thread sizes, eye diameters, materials and dimensional drawings.
Clevis types
Gas spring clevis end fittings for pivoting mounts. Compare thread sizes, widths, pin types, materials and dimensional drawings.
Ball joint types
Gas spring angle ball joints for limited angular movement and alignment. Compare 10, 13 and 16 mm socket sizes, stud threads and materials.
Ball socket types with clip
Nylon and metal ball sockets with retaining clips for gas spring mounting. Compare socket sizes, threads, materials and compatible ball studs.
Metal ball socket types with retaining pin
Metal ball sockets for gas spring mounting and limited angular movement. Compare 10, 13 and 16 mm sizes, threads and compatible ball studs.
Ball stud types
Ball studs for direct mounting to plates, doors, panels and brackets. Compare threads and 10, 13 or 16 mm ball sizes for compatible sockets.
Rod end bearing types
Gas spring rod-end bearings for pivoting mounts and limited angular movement. Compare bore sizes, threads, materials and dimensional drawings.
Brackets
Gas spring mounting brackets for doors, lids, covers and panels. Compare pre-drilled brackets with 10 or 13 mm ball studs and 6 or 8 mm pins.
About Gas Spring Connecting Parts

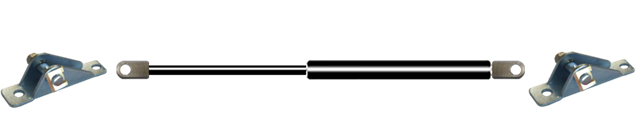

Gemini offers eyes, clevises, ball joints, ball sockets, rod-end bearings, studs and mounting brackets for gas spring assemblies.
The selected end fittings affect the assembled length and mounting geometry. Match the thread, pivot direction, load and available clearance to the application.
If the required connecting part is not listed, send Gemini a drawing or the relevant dimensions for review.
Request a quote for Gas Spring Connecting Parts
Every Gemini gas spring is built to order in Vernon, BC. Send us your stroke, force and end-fitting requirements and we will come back with a quotation.
