Gas Compression Springs

Gas Compression Springs Diameter D1 Ø 8MM - D2 Ø 23MM

Model 0823-GS

Gas compression spring 0823-GS specifications: dimensions, force range, stroke lengths, end fittings and available operating options.

Configurator

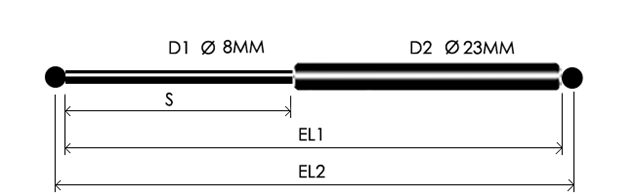

Enlarged technical drawing

Material
Steel, nitrogen filled
Made in
Vernon, BC, Canada
Quality documentation
ISO 9001:2015 certificate (2018–2020)

Part of Gas Compression Springs

Technical specifications

Dimensions, 0823-GS: technical specifications
Rod D1Ø8MM / 0.315"
Cylinder D2Ø23MM / 0.91"
Stroke lengths (S)20-300MM / 0.79" - 11.81"
Extended length EL1Stroke (S)*2 +43MM / 1.69" / shortest possible
Extended length EL2Stroke (S)*2 +43MM / + connecting parts
Force, 0823-GS: technical specifications
Force (F1) range30-750N / 6.75-168Lbs
Behaviour, 0823-GS: technical specifications
DampingNormal/No/Increased
SpeedNormal/Slow/Fast
Working temperature-30°C +80°C / -22°F +176°F
Progression ( approx.)21%
Finish, 0823-GS: technical specifications
RodQPQ
CylinderBlack

End fittings, options and part numbers

Select any drawing to enlarge it.

Scroll horizontally to view all columns.

0823-GS: Part # 505: Threaded ends M8x1.25Request a quote for part # 505 (opens in a new tab)
L: 9MM0.35"
Extended length (EL): Stroke (S)*2 +43MM/1.69" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 515: Eye ends E8Request a quote for part # 515 (opens in a new tab)
A: M8x1.25 B: Ø8.1MM C: 16MM D: 20MM E: 10MM0.319" 0.63" 0.79" 0.39"
Extended length (EL): Stroke (S)*2 +83MM/3.27" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 515.3: Eye ends E8.9Request a quote for part # 515.3 (opens in a new tab)
A: M8x1.25 B: Ø8.1MM C: 16MM D: 22MM E: 5MM0.319" 0.63" 0.87" 0.20"
Extended length (EL): Stroke (S)*2 +87MM/3.43" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 525: Clevis ends C8Request a quote for part # 525 (opens in a new tab)
d2: M8x1.25 d1: Ø8MM B: 8MM G: 16MM L1: 42MM L2: 32MM0.315" 0.315" 0.63" 1.65" 1.26"
Extended length (EL): Stroke (S)*2 +107MM/4.21" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 535: Angle ball joint ends A8Request a quote for part # 535 (opens in a new tab)
d2: M8x1.25 d2/1: M8x1.25 a: 30MM d1: ball Ø13MM L2: 16.5MM1.18" 0.65"
Extended length (EL): Stroke (S)*2 +103MM/4.06" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 535.1: Angle ball joint ends A8.1Request a quote for part # 535.1 (opens in a new tab)
d2: M8x1.25 d2/1: 5/16-18UNC a: 20MM d1: ball Ø13MM L2: 16.5MM0.79" 0.65"
Extended length (EL): Stroke (S)*2 +83MM/3.27" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 535.2: Angle ball joint ends A8.2Request a quote for part # 535.2 (opens in a new tab)
d2: M8x1.25 d2/1: 5/16-18UNC a: 25MM d1: ball Ø10MM L2: 16.5MM0.98" 0.65"
Extended length (EL): Stroke (S)*2 +93MM/3.66" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 535.3: Angle ball joint ends A8INRequest a quote for part # 535.3 (opens in a new tab)
d2: M8x1.25 d2/1: 5/16-18UNC a: 30MM d1: ball Ø13MM L2: 16.5MM1.18" 0.65"
Extended length (EL): Stroke (S)*2 +103MM/4.06" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 535.5: Angle ball joint ends A8.5Request a quote for part # 535.5 (opens in a new tab)
d2: M8x1.25 d2/1 M8x1.25 a: 25MM d1: ball Ø10MM L2: 16.5MM0.98" 0.65"
Extended length (EL): Stroke (S)*2 +93MM/3.66" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 535.7: Angle ball joint ends A8.7Request a quote for part # 535.7 (opens in a new tab)
d2: M8x1.25 d2/1 M8x1.25 a: 20MM d1: ball Ø10MM L2: 16.5MM0.79" 0.65"
Extended length (EL): Stroke (S)*2 +83MM/3.27" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 545: Nylon ball socket ends P8Request a quote for part # 545 (opens in a new tab)
d2: M8x1.25 a: 18MM d1: ball Ø10MM0.71"
Extended length (EL): Stroke (S)*2 +79MM/3.11" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 545.18: Nylon ball joint ends P18Request a quote for part # 545.18 (opens in a new tab)
d2: M8x1.25 a: 18MM d1: ball Ø10MM d2/1: M8x1.25 L2: 16.5MM0.71" 0.71" 0.65"
Extended length (EL): Stroke (S)*2 +79MM/3.11" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 545.19: Nylon ball joint ends P19Request a quote for part # 545.19 (opens in a new tab)
d2: M8x1.25 a: 18MM d1: ball Ø10MM d2/1: 5/16-18UNC L2: 16.5MM0.71" 0.71" 0.65"
Extended length (EL): Stroke (S)*2 +79MM/3.11" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 555: Metal ball socket ends B8Request a quote for part # 555 (opens in a new tab)
d2: M8x1.25 a: 18MM d1: ball Ø10MM0.71"
Extended length (EL): Stroke (S)*2 +79MM/3.11" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 555.18: Metal ball joint ends B18Request a quote for part # 555.18 (opens in a new tab)
d2: M8x1.25 a: 18MM d1: ball Ø10MM d2/1: M8x1.25 L2: 16.5MM0.71" 0.71" 0.65"
Extended length (EL): Stroke (S)*2 +79MM/3.11" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 555.19: Metal ball joint ends B19Request a quote for part # 555.19 (opens in a new tab)
d2: M8x1.25 a: 18MM d1: ball Ø10MM d2/1: 5/16-18UNC L2: 16.5MM0.71" 0.71" 0.65"
Extended length (EL): Stroke (S)*2 +79MM/3.11" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 565: Metal ball socket ends B32Request a quote for part # 565 (opens in a new tab)
d2: M8x1.25 a: 20MM d1: ball Ø10MM0.79"
Extended length (EL): Stroke (S)*2 +83MM/3.27" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 565.2: Metal ball socket ends B38Request a quote for part # 565.2 (opens in a new tab)
d2: M8x1.25 a: 30MM d1: ball Ø13MM1.18"
Extended length (EL): Stroke (S)*2 +103MM/4.06" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 565.4: Metal ball socket ends B36Request a quote for part # 565.4 (opens in a new tab)
d2: M8x1.25 a: 25MM d1: ball Ø13MM0.98"
Extended length (EL): Stroke (S)*2 +93MM/3.66" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: Part # 567: Rod end bearings RB8Request a quote for part # 567 (opens in a new tab)
d3: M8x1.25 L1: 36MM d1: Ø8MM L2: 24MM1.42" 0.315" 0.94"
Extended length (EL): Stroke (S)*2 +115MM/4.53" ( shortest possible )

Scroll horizontally to view all columns.

0823-GS: options and accessories
- Reducible force:V
- Friction:FEL1/EL2 10MM longer
- Dust boot:D
- Rod protector:RStroke reduction 5MM
- Lockable protector:LStroke reduction 5MM
- Horizontal use:HEL1/EL2 increase
- Low temperature -50°C / -58°FA
- High temperature 200°C / 392°FB
- No end fittings:
- Extended thread length:
- Cylinder end with groove:
- Cylinder end with extended clevis:
- Private labelP

Scroll horizontally to view all columns.

0823-GS: Product Inquiry example:
Part #Stroke (S) MM/INCHLength (EL2) MM/INCHForce N/LbsDampingSpeedWorking tempOptions
515100 / 3.94283 / 11.14180N / 40LbsNormalNormalNormal
  • Extended length (EL) of a gas compression spring is calculated when piston rod is fully extended
  • Force (F1) measured with piston rod 5MM/ 0.20" compressed
  • Progression rate will change depending on cylinder volume
  • Connecting parts are interchangeable, make your own combination or go to product category connecting parts to view more options
  • Please be advised that Extended Length EL2 will change depending on your choice of connecting parts
