Oil Damper Springs

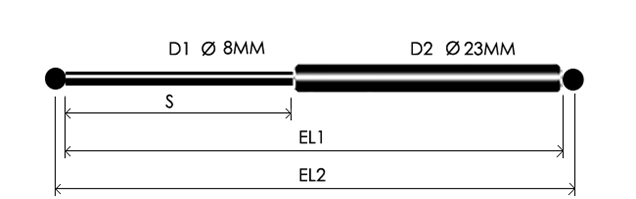

Oil Damper Diameter D1 Ø 8MM - D2 Ø 23MM

Name: Gemini Gas Springs Inc.
Address: 1-6276 Pleasant Valley Rd, Vernon, BC, V1B 3R3, CA
Telephone: +1 778 475-5611

Model 0823-OIL

Oil damper 0823-OIL specifications: dimensions, force range, stroke lengths, end fittings and available operating options.

Request a quote Configurator

Material: Steel
Made in: Vernon, BC, Canada
Quality documentation: ISO 9001:2015 certificate (2018–2020)

Part of Oil Damper Springs

Technical specifications

Dimensions, 0823-OIL: technical specifications
Rod D1Ø	8MM / 0.315"
Cylinder D2Ø	23MM / 0.91"
Stroke lengths (S)	20-300MM / 0.79" - 11.81"
Extended length EL1	Stroke (S)*2 +45MM / 1.77" / (shortest possible)
Extended length EL2	Stroke (S)*2 +45MM / + connecting parts

Force, 0823-OIL: technical specifications
Damping force	Max. 1800N/405Lbs

Behaviour, 0823-OIL: technical specifications
Damping direction	Compression / Code: ODC
Damping	Normal/Medium/Strong
Working temperature	-30°C +80°C / -22°F +176°F

Finish, 0823-OIL: technical specifications
Rod	QPQ
Cylinder	Black

End fittings, options and part numbers

Select any drawing to enlarge it.

0823-OIL: Part # 505OD_(C/E/B): Threaded ends M8x1.25Request a quote for part # 505OD_(C/E/B) (opens in a new tab)
		L: 9MM	0.35"
Extended length (EL): Stroke (S)*2 +45MM/1.77" ( shortest possible )

0823-OIL: Part # 515OD_(C/E/B): Eye ends E8Request a quote for part # 515OD_(C/E/B) (opens in a new tab)
		A: M8x1.25 B: Ø8.1MM C: 16MM D: 20MM E: 10MM	0.319" 0.63" 0.79" 0.39"
Extended length (EL): Stroke (S)*2 +85MM/3.35" ( shortest possible )

0823-OIL: Part # 515.3OD_(C/E/B): Eye ends E8.9Request a quote for part # 515.3OD_(C/E/B) (opens in a new tab)
		A: M8x1.25 B: Ø8.1MM C: 16MM D: 22MM E: 5MM	0.319" 0.63" 0.87" 0.20"
Extended length (EL): Stroke (S)*2 +89MM/3.50" ( shortest possible )

0823-OIL: Part # 525OD_(C/E/B): Clevis ends C8Request a quote for part # 525OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 d1: Ø8MM B: 8MM G: 16MM L1: 42MM L2: 32MM	0.315" 0.315" 0.63" 1.65" 1.26"
Extended length (EL): Stroke (S)*2 +109MM/4.29" ( shortest possible )

0823-OIL: Part # 535OD_(C/E/B): Angle ball joint ends A8Request a quote for part # 535OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 d2/1: M8x1.25 a: 30MM d1: ball Ø13MM L2: 16.5MM	1.18" 0.65"
Extended length (EL): Stroke (S)*2 +105MM/4.13" ( shortest possible )

0823-OIL: Part # 535.1OD_(C/E/B): Angle ball joint ends A8.1Request a quote for part # 535.1OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 d2/1 5/16-18UNC a: 20MM d1: ball Ø10MM L2: 16.5MM	0.79" 0.65"
Extended length (EL): Stroke (S)*2 +85MM/3.35" ( shortest possible )

0823-OIL: Part # 535.2OD_(C/E/B): Angle ball joint ends A8.2Request a quote for part # 535.2OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 d2/1 5/16-18UNC a: 25MM d1: ball Ø10MM L2: 16.5MM	0.98" 0.65"
Extended length (EL): Stroke (S)*2 +95MM/3.74" ( shortest possible )

0823-OIL: Part # 535.3OD_(C/E/B): Angle ball joint ends A8INRequest a quote for part # 535.3OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 d2/1 5/16-18UNC a: 30MM d1: ball Ø13MM L2: 16.5MM	1.18" 0.65"
Extended length (EL): Stroke (S)*2 +105MM/4.13" ( shortest possible )

0823-OIL: Part # 535.5OD_(C/E/B): Angle ball joint ends A8.5Request a quote for part # 535.5OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 d2/1: M8x1.25 a: 25MM d1: ball Ø10MM L2: 16.5MM	0.98" 0.65"
Extended length (EL): Stroke (S)*2 +95MM/3.74" ( shortest possible )

0823-OIL: Part # 535.7OD_(C/E/B): Angle ball joint ends A8.7Request a quote for part # 535.7OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 d2/1: M8x1.25 a: 20MM d1: ball Ø10MM L2: 16.5MM	0.79" 0.65"
Extended length (EL): Stroke (S)*2 +85MM/3.35" ( shortest possible )

0823-OIL: Part # 545OD_(C/E/B): Nylon ball socket ends P8Request a quote for part # 545OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 a: 18MM d1: ball Ø10MM	0.79" 0.65"
Extended length (EL): Stroke (S)*2 +81MM/3.19" ( shortest possible )

0823-OIL: Part # 545.18OD_ (C/E/B): Nylon ball joint ends P18Request a quote for part # 545.18OD_ (C/E/B) (opens in a new tab)
		d2: M8x1.25 a: 18MM d1: ball Ø10MM d2/1: M8x1.25 L2: 16.5MM	0.71" 0.71" 0.65"
Extended length (EL): Stroke (S)*2 +81MM/3.19" ( shortest possible )

0823-OIL: Part # 545.19OD_ (C/E/B): Nylon ball joint ends P19Request a quote for part # 545.19OD_ (C/E/B) (opens in a new tab)
		d2: M8x1.25 a: 18MM d1: ball Ø10MM d2/1: 5/16-18UNC L2: 16.5MM	0.71" 0.71" 0.65"
Extended length (EL): Stroke (S)*2 +81MM/3.19" ( shortest possible )

0823-OIL: Part # 555OD_(C/E/B): Metal ball socket ends B8Request a quote for part # 555OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 a: 18MM d1: ball Ø10MM	0.71"
Extended length (EL): Stroke (S)*2 +81MM/3.19" ( shortest possible )

0823-OIL: Part # 555.18OD_(C/E/B): Metal ball joint ends B18Request a quote for part # 555.18OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 a: 18MM d1: ball Ø10MM d2/1: M8x1.25 L2: 16.5MM	0.71" 0.71" 0.65"
Extended length (EL): Stroke (S)*2 +81MM/3.19" ( shortest possible )

0823-OIL: Part # 555.19OD_(C/E/B): Metal ball joint ends B19Request a quote for part # 555.19OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 a: 18MM d1: ball Ø10MM d2/1: 5/16-18UNC L2: 16.5MM	0.71" 0.71" 0.65"
Extended length (EL): Stroke (S)*2 +81MM/3.19" ( shortest possible )

0823-OIL: Part # 565OD_(C/E/B): Metal ball socket ends B32Request a quote for part # 565OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 a: 20MM d1: ball Ø10MM	0.79"
Extended length (EL): Stroke (S)*2 +85MM/3.35" ( shortest possible )

0823-OIL: Part # 565.2OD_(C/E/B): Metal ball socket ends B38Request a quote for part # 565.2OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 a: 30MM d1: ball Ø13MM	0.79"
Extended length (EL): Stroke (S)*2 +105MM/4.13" ( shortest possible )

0823-OIL: Part # 565.4OD_(C/E/B): Metal ball socket ends B36Request a quote for part # 565.4OD_(C/E/B) (opens in a new tab)
		d2: M8x1.25 a: 25MM d1: ball Ø10MM	0.79"
Extended length (EL): Stroke (S)*2 +95MM/3.74" ( shortest possible )

0823-OIL: Part # 567OD_(C/E/B): Rod end bearings RB8Request a quote for part # 567OD_(C/E/B) (opens in a new tab)
		d3: M8x1.25 L1: 36MM d1: ball Ø8MM L2: 24MM	1.42" 0.315" 0.94"
Extended length (EL): Stroke (S)*2 +117MM/4.61" ( shortest possible )

0823-OIL: options and accessories
- Dust boot:	D
- Rod protector:	R	Stroke reduction 5MM
- Lockable protector:	L	Stroke reduction 5MM
- Horizontal use:	H	EL1/EL2 increase
- Low temperature -50°C / -58°F	A
- High temperature 200°C / 392°F	B
- No end fittings:
- Extended thread length:
- Cylinder end with groove:
- Private label	P

0823-OIL: Product Inquiry example:
Part #	Stroke (S) MM/INCH	Length (EL2) MM/INCH	Weight of object	Damping	Speed	Working temp	Options
515ODC	100 / 3.94	283 / 11.14	--	Normal	Normal	Normal

Extended length (EL) of an oil damper is calculated when piston rod is fully extended
Connecting parts are interchangeable, make your own combination or go to product category connecting parts to view more options
Please be advised that Extended Length EL2 will change depending on your choice of connecting parts

Request a quote for 0823-OIL

Every Gemini gas spring is built to order in Vernon, BC. Send us your stroke, force and end-fitting requirements and we will come back with a quotation.

Request a quote Gas spring configurator +1 778 475-5611
