Gas Traction Springs

Gas Traction Springs Diameter D1 Ø 8MM - D2 Ø 23MM

Model 0823-GT

Gas traction spring 0823-GT specifications: dimensions, force range, stroke lengths, end fittings and available operating options.

Request a quoteConfigurator
Gas Traction Springs 8 23
Material
Steel, nitrogen filled
Made in
Vernon, BC, Canada
Quality documentation
ISO 9001:2015 certificate (2018–2020)

Part of Gas Traction Springs

Technical specifications

Dimensions, 0823-GT: technical specifications
Rod D1Ø8MM / 0.315"
Cylinder D2Ø23MM / 0.91"
Stroke lengths (S)10-300MM / 0.39" - 11.81"
Retracted length RLStroke + 78MM / 3.07" / shortest possible
Extended length ELRetracted Length + Stroke / + connecting parts
X10MM / 0.39"
Force, 0823-GT: technical specifications
Force (F1) range50-400N / 11.25-90Lbs
Behaviour, 0823-GT: technical specifications
DampingNo
SpeedNormal
Working temperature-30°C +80°C / -22°F +176°F
Progression ( approx.)50%
Finish, 0823-GT: technical specifications
RodQPQ
CylinderBlack

End fittings, options and part numbers

Scroll horizontally to view all columns.

0823-GT: Part # 575: Threaded ends M8x1.25
0823-GT part # 575, Threaded ends M8x1.25: assembled spring drawing0823-GT part # 575, Threaded ends M8x1.25: end fitting dimension drawingL: 9MM0.35"
Retracted Length (RL): Stroke + 78MM / 3.07" ( shortest possible )
Extended length (EL): Stroke*2 + 78MM / 3.07"

Scroll horizontally to view all columns.

0823-GT: Part # 575.1: Eye ends E8
0823-GT part # 575.1, Eye ends E8: assembled spring drawing0823-GT part # 575.1, Eye ends E8: end fitting dimension drawingA: M8x1.25 B: Ø8.1MM C: 16MM D: 20MM E: 10MM0.319" 0.63" 0.79" 0.39"
Retracted Length (RL): Stroke + 118MM / 4.65" ( shortest possible )
Extended length (EL): Stroke*2 + 118MM / 4.65"

Scroll horizontally to view all columns.

0823-GT: Part # 575.2: Clevis ends C8

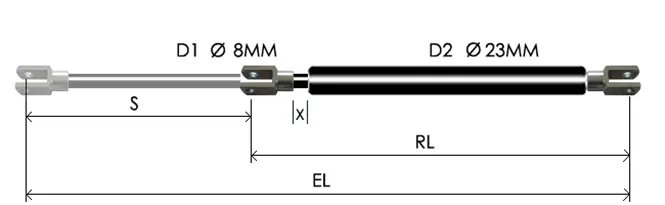

0823-GT part # 575.2, Clevis ends C8: assembled spring drawing0823-GT part # 575.2, Clevis ends C8: end fitting dimension drawingd2: M8x1.25 d1: Ø8MM B: 8MM G: 16MM L1: 42MM L2: 32MM0.315" 0.315" 0.63" 1.65" 1.26"
Retracted Length (RL): Stroke + 142MM / 5.59" ( shortest possible )
Extended length (EL): Stroke*2 + 142MM / 5.59"

Scroll horizontally to view all columns.

0823-GT: Part # 575.3: Angle ball joint ends A8

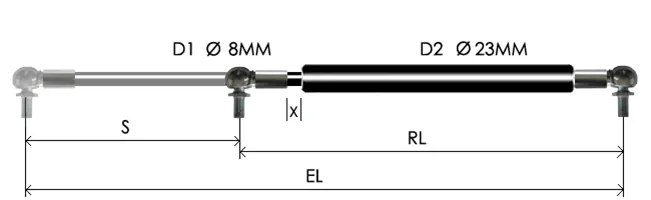

0823-GT part # 575.3, Angle ball joint ends A8: assembled spring drawing0823-GT part # 575.3, Angle ball joint ends A8: end fitting dimension drawingd2: M8x1.25 d2/1: M8x1.25 A: 30MM d1: ball Ø13MM L2: 16.5MM1.18" 0.65"
Retracted Length (RL): Stroke + 138MM / 5.43" ( shortest possible )
Extended length (EL): Stroke*2 + 138MM / 5.43"

Scroll horizontally to view all columns.

0823-GT: Part # 575.4: Angle ball joint ends A8IN
0823-GT part # 575.4, Angle ball joint ends A8IN: assembled spring drawing0823-GT part # 575.4, Angle ball joint ends A8IN: end fitting dimension drawingd2: M8x1.25 d2/1: 5/16-18UNC A: 30MM d1: ball Ø13MM L2: 16.5MM1.18" 0.65"
Retracted Length (RL): Stroke + 138MM / 5.43" ( shortest possible )
Extended length (EL): Stroke*2 + 138MM / 5.43"

Scroll horizontally to view all columns.

0823-GT: Part # 575.6: Angle ball joint ends A8.7
0823-GT part # 575.6, Angle ball joint ends A8.7: assembled spring drawing0823-GT part # 575.6, Angle ball joint ends A8.7: end fitting dimension drawingd2: M8x1.25 d2/1: M8x1.25 A: 20MM d1: ball Ø10MM L2: 16.5MM0.79" 0.65"
Retracted Length (RL): Stroke + 118MM / 4.65" ( shortest possible )
Extended length (EL): Stroke*2 + 118MM / 4.65"

Scroll horizontally to view all columns.

0823-GT: Part # 575.7: Angle ball joint ends A8.1
0823-GT part # 575.7, Angle ball joint ends A8.1: assembled spring drawing0823-GT part # 575.7, Angle ball joint ends A8.1: end fitting dimension drawingd2: M8x1.25 d2/1: 5/16-18UNC A: 20MM d1: ball Ø10MM L2: 16.5MM0.79" 0.65"
Retracted Length (RL): Stroke + 118MM / 4.65" ( shortest possible )
Extended length (EL): Stroke*2 + 118MM / 4.65"

Scroll horizontally to view all columns.

0823-GT: Part # 575.8: Angle ball joint ends A8.5
0823-GT part # 575.8, Angle ball joint ends A8.5: assembled spring drawing0823-GT part # 575.8, Angle ball joint ends A8.5: end fitting dimension drawingd2: M8x1.25 d2/1: M8x1.25 A: 25MM d1: ball Ø10MM L2: 16.5MM0.98" 0.65"
Retracted Length (RL): Stroke + 128MM / 5.04" ( shortest possible )
Extended length (EL): Stroke*2 + 128MM / 5.04"

Scroll horizontally to view all columns.

0823-GT: Part # 575.9: Angle ball joint ends A8.2
0823-GT part # 575.9, Angle ball joint ends A8.2: assembled spring drawing0823-GT part # 575.9, Angle ball joint ends A8.2: end fitting dimension drawingd2: M8x1.25 d2/1: 5/16-18UNC A: 25MM d1: ball Ø10MM L2: 16.5MM0.98" 0.65"
Retracted Length (RL): Stroke + 128MM / 5.04" ( shortest possible )
Extended length (EL): Stroke*2 + 128MM / 5.04"

Scroll horizontally to view all columns.

0823-GT: Part # 575.10: Metal ball socket ends B32

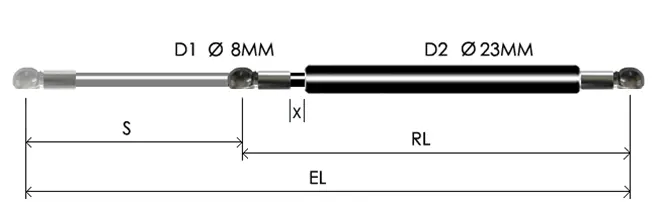

0823-GT part # 575.10, Metal ball socket ends B32: assembled spring drawing0823-GT part # 575.10, Metal ball socket ends B32: end fitting dimension drawingd2: M8x1.25 A: 20MM d1: ball Ø10MM0.79"
Retracted Length (RL): Stroke + 118MM / 4.65" ( shortest possible )
Extended length (EL): Stroke*2 + 118MM / 4.65"

Scroll horizontally to view all columns.

0823-GT: Part # 575.11: Metal ball socket ends B36
0823-GT part # 575.11, Metal ball socket ends B36: assembled spring drawing0823-GT part # 575.11, Metal ball socket ends B36: end fitting dimension drawingd2: M8x1.25 A: 25MM d1: ball Ø10MM0.98"
Retracted Length (RL): Stroke + 128MM / 5.04" ( shortest possible )
Extended length (EL): Stroke*2 + 128MM / 5.04"

Scroll horizontally to view all columns.

0823-GT: Part # 575.12: Rod end bearing RB8

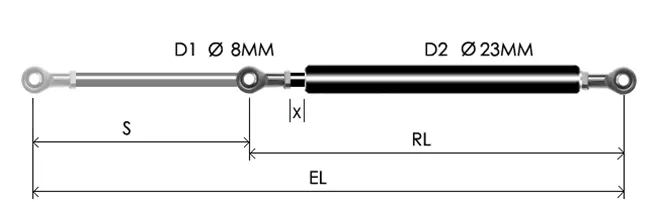

0823-GT part # 575.12, Rod end bearing RB8: assembled spring drawing0823-GT part # 575.12, Rod end bearing RB8: end fitting dimension drawingd3: M8x1.25 L1: 36MM d1: Ø8MM L2: 24MM1.42" 0.315" 0.94"
Retracted Length (RL): Stroke + 150MM / 5.91" ( shortest possible )
Extended length (EL): Stroke*2 + 150MM / 5.91"

Scroll horizontally to view all columns.

0823-GT: options and accessories
- Damping:RL and EL increase 86MM / 3.39" Progression approx. 25%
- Dust boot:DOption dustboot
- Rod protector:ROption rodprotectorStroke reduction 5MM
- Low temperature -50°C / -58°FA
- High temperature 200°C / 392°FB
- Private labelP

Scroll horizontally to view all columns.

0823-GT: Product Inquiry example:
Part #Stroke (S) MM/INCHRetracted Length (RL) MM/INCHForce N/LbsOptions
575.1100 / 3.94178 / 7.00180N / 40Lbs
  • Extended length (EL) of a gas compression spring is calculated when piston rod is fully extended
  • Force (F1) measured with piston rod 5MM/ 0.20" compressed
  • Progression rate will change depending on cylinder volume
  • Connecting parts are interchangeable, make your own combination or go to product category connecting parts to view more options
  • Please be advised that Extended Length EL2 will change depending on your choice of connecting parts

Enlarged technical drawing

Request a quote for 0823-GT

Every Gemini gas spring is built to order in Vernon, BC. Send us your stroke, force and end-fitting requirements and we will come back with a quotation.
