Stainless Steel Gas Springs 316L Diameter D1 Ø 10MM - D2 Ø 28MM
Model 1028-STSL
316L stainless steel gas spring 1028-STSL specifications: dimensions, force range, stroke lengths, end fittings and available operating options.
- Material
- Stainless steel 316L
- Made in
- Vernon, BC, Canada
- Quality documentation
- ISO 9001:2015 certificate (2018–2020)
Part of Stainless Steel Gas Springs
Technical specifications
| Rod D1Ø | 10MM / 0.39" |
|---|---|
| Cylinder D2Ø | 28MM / 1.10" |
| Stroke lengths (S) | 20-800MM / 0.79"-31.50" |
| Extended length EL1 | Stroke (S)*2 +47MM / 1.85" / (shortest possible) |
| Extended length EL2 | Stroke (S)*2 +47MM / + connecting parts |
| Force (F1) range | 30-1200N / 6.75-270Lbs |
|---|
| Damping | Normal/No/Increased |
|---|---|
| Speed | Normal/Slow/Fast |
| Working temperature | -30°C +80°C / -22°F +176°F |
| Progression ( approx.) | 21% |
| Rod | Stainless Steel 316L |
|---|---|
| Cylinder | Stainless Steel 316L |
End fittings, options and part numbers

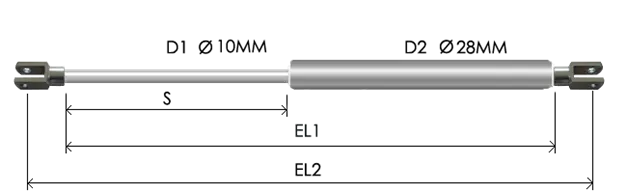

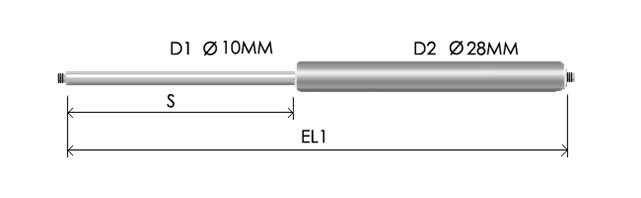

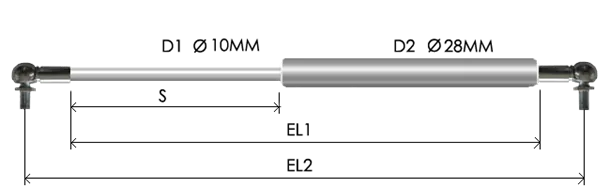

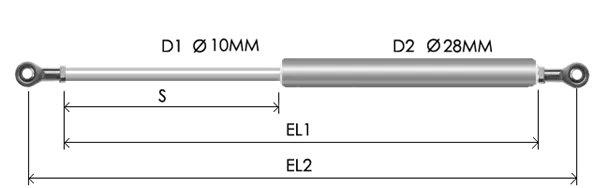

Select any drawing to enlarge it.
Scroll horizontally to view all columns.
| L: 9MM | 0.35" | ||
| Extended length (EL): Stroke (S)*2 +48MM/1.89" ( shortest possible ) | |||
Scroll horizontally to view all columns.
| A: M8x1.25 B: Ø8.1MM C: 16MM D: 20MM E: 10MM | 0.319" 0.63" 0.79" 0.39" | ||
| Extended length (EL): Stroke (S)*2 +88MM/3.46" ( shortest possible ) | |||
Scroll horizontally to view all columns.

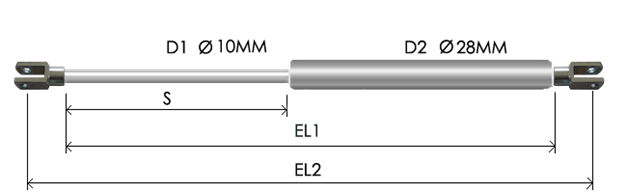

| d2: M8x1.25 d1: Ø8MM B: 8MM G: 16MM L1: 42MM L2: 32MM | 0.315" 0.315" 0.63" 1.65" 1.26" | ||
| Extended length (EL): Stroke (S)*2 +112MM/4.41" ( shortest possible ) | |||
Scroll horizontally to view all columns.

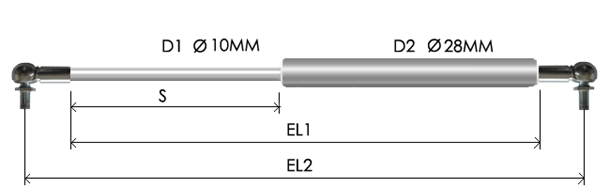

| d2: M8x1.25 d2/1: M8x1.25 a: 30MM d1: ball Ø13MM L2: 16.5MM | 1.18" 0.65" | ||
| Extended length (EL): Stroke (S)*2 +108MM/4.25" ( shortest possible ) | |||
Scroll horizontally to view all columns.
| d2: M8x1.25 d2/1: 5/16-18UNC a: 30MM d1: ball Ø13MM L2: 16.5MM | 1.18" 0.65" | ||
| Extended length (EL): Stroke (S)*2 +108MM/4.25" ( shortest possible ) | |||
Scroll horizontally to view all columns.
| d2: M8x1.25 d2/1: M10x1.50 a: 35MM d1: ball Ø16MM L2: 20MM | 1.38" 0.79" | ||
| Extended length (EL): Stroke (S)*2 +118MM/4.65" ( shortest possible ) | |||
Scroll horizontally to view all columns.
| d3: M8x1.25 L1: 36MM d1: Ø8MM L2: 24MM | 1.42" 0.315" 0.94" | ||
| Extended length (EL): Stroke (S)*2 +120MM/4.72" ( shortest possible ) | |||
Scroll horizontally to view all columns.
| - Valve: | V | ||
|---|---|---|---|
| - Dust boot: | D | ||
| - Rod protector: | R | Stroke reduction 5MM | |
| - Lockable protector: | L | Stroke reduction 5MM | |
| - Low temperature -50°C / -58°F | A | ||
| - High temperature 200°C / 392°F | B | ||
| - Foodgrade Oil | H1 | ||
| - Private label | P | ||
Scroll horizontally to view all columns.
| Part # | Stroke (S) MM/INCH | Length (EL2) MM/INCH | Force N/Lbs | Damping | Speed | Working temp | Options |
|---|---|---|---|---|---|---|---|
| 618N | 250 / 9.84 | 587 / 23.11 | 890N / 200Lbs | Normal | Normal | Normal | |
- Extended length (EL) of a gas compression spring is calculated when piston rod is fully extended
- Force (F1) measured with piston rod 5MM/ 0.20" compressed
- Progression rate will change depending on cylinder volume
- Connecting parts are interchangeable, make your own combination or go to product category connecting parts to view more options
- Please be advised that Extended Length EL2 will change depending on your choice of connecting parts
Request a quote for 1028-STSL
Every Gemini gas spring is built to order in Vernon, BC. Send us your stroke, force and end-fitting requirements and we will come back with a quotation.
