Gas Compression Springs

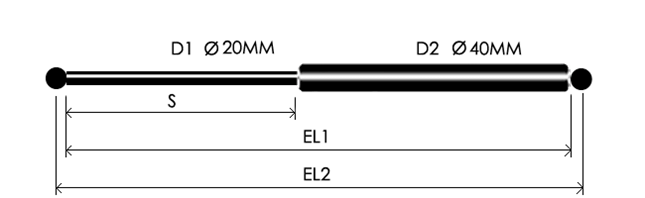

Gas Compression Springs Diameter D1 Ø 20MM - D2 Ø 40MM
Model 2040-GS
Gas compression spring 2040-GS specifications: dimensions, force range, stroke lengths, end fittings and available operating options.
- Material
- Steel, nitrogen filled
- Made in
- Vernon, BC, Canada
- Quality documentation
- ISO 9001:2015 certificate (2018–2020)
Part of Gas Compression Springs
Technical specifications
| Rod D1Ø | 20MM / 0.79" |
|---|---|
| Cylinder D2Ø | 40MM / 1.57" |
| Stroke lengths (S) | 20-1000MM / 0.79" - 39.37" |
| Extended length EL1 | Stroke (S)*2 +70MM / 2.76" / shortest possible |
| Extended length EL2 | Stroke (S)*2 +70MM / + connecting parts |
| Force (F1) range | 500-5000N / 112-1125Lbs |
|---|
| Damping | Normal/No/Increased |
|---|---|
| Speed | Normal/Slow/Fast |
| Working temperature | -30°C +80°C / -22°F +176°F |
| Progression ( approx.) | 45% |
| Rod | QPQ |
|---|---|
| Cylinder | Black |
End fittings, options and part numbers
Select any drawing to enlarge it.
Scroll horizontally to view all columns.
| L: 14MM | 0.55" | ||
| Extended length (EL): Stroke (S)*2 +70MM/2.76" ( shortest possible ) | |||
Scroll horizontally to view all columns.
| A: MF14x1.50 B: Ø14.1MM C: 25MM D: 40MM E: 14MM | 0.555" 0.98" 1.57" 0.55" | ||
| Extended length (EL): Stroke (S)*2 +150MM/5.91" ( shortest possible ) | |||
Scroll horizontally to view all columns.
| d2: MF14x1.50 d1: Ø14MM B: 14MM G: 28MM L1: 72MM L2: 56MM | 0.55" 0.55" 1.10" 2.83" 2.20" | ||
| Extended length (EL): Stroke (S)*2 +182MM/7.17" ( shortest possible ) | |||
Scroll horizontally to view all columns.
| d2: MF14x1.50 d2/1: MF14x1.50 a: 45MM d1: ball Ø19MM L2: 28MM | 1.77" 1.10" | ||
| Extended length (EL): Stroke (S)*2 +160MM/6.30" ( shortest possible ) | |||
Scroll horizontally to view all columns.
| d3: MF14x1.50 L1: 57MM d1: Ø14MM L2: 36MM | 2.24" 0.55" 1.42" | ||
| Extended length (EL): Stroke (S)*2 +184MM/7.24" ( shortest possible ) | |||
Scroll horizontally to view all columns.
| - Low temperature -50°C / -58°F | A |
|---|---|
| - High temperature 200°C / 392°F | B |
| - Private label | P |
Scroll horizontally to view all columns.
| Part # | Stroke (S) MM/INCH | Length (EL2) MM/INCH | Force N/Lbs | Damping | Speed | Working temp | Options |
|---|---|---|---|---|---|---|---|
| 841 | 250 / 9.84 | 650 / 25.59 | 4000N / 900Lbs | Normal | Normal | Normal | |
- Extended length (EL) of a gas compression spring is calculated when piston rod is fully extended
- Force (F1) measured with piston rod 5MM/ 0.20" compressed
- Progression rate will change depending on cylinder volume
- Connecting parts are interchangeable, make your own combination or go to product category connecting parts to view more options
- Please be advised that Extended Length EL2 will change depending on your choice of connecting parts
Request a quote for 2040-GS
Every Gemini gas spring is built to order in Vernon, BC. Send us your stroke, force and end-fitting requirements and we will come back with a quotation.
